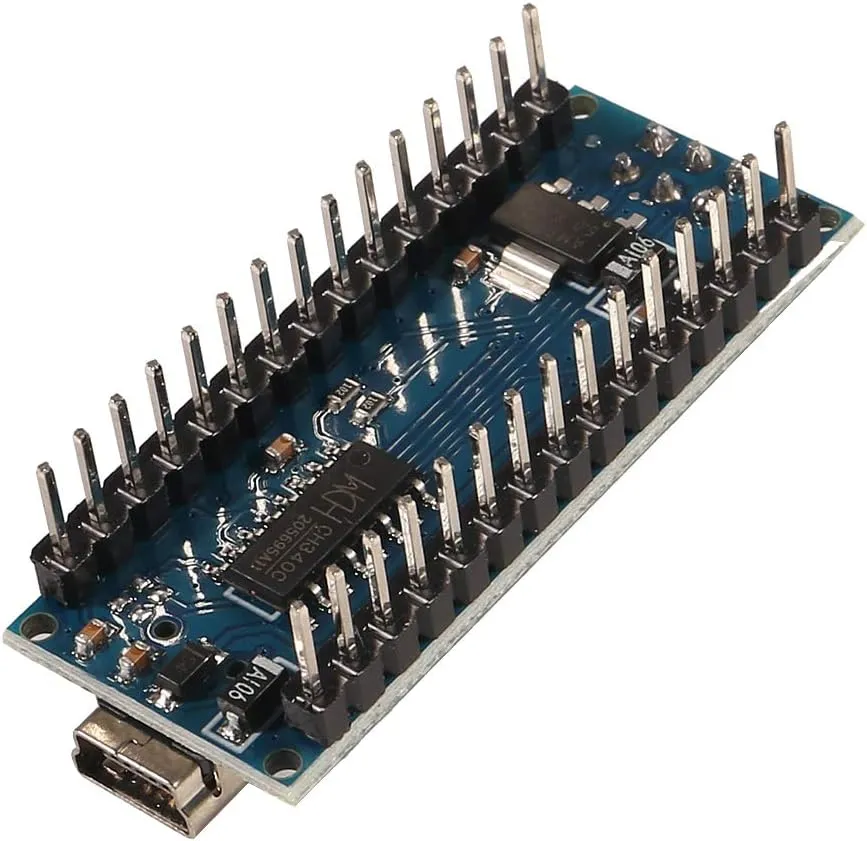

- *The Nano is using the chips ATmega328P and CH340, Replace FT232RL.
- *It is a smallest, complete, and breadboard friendly board. It has everything that Diecimila/Duemilanove has (electrically) with more analog input pins and onboard 5V AREF jumper.
- *Nano's got the breadboard-ability of the Boarduino and the Mini USB with smaller footprint than either, so users have more breadboard space. It's got a pin layout that works well with the Mini or the Basic Stamp (TX, RX, ATN, GND on one top, power and ground on the other).
- *The Nano can be powered via the Mini-B USB connection, 7-12V unregulated external power supply (pin 30), or 5V regulated external power supply (pin 27). The power source is automatically selected to the highest voltage source.
- *Arduino Nano V3.0 ATMEGA328P Improved version with 3pcs pin headers (2pcs 15pin headers 1pcs 6pin headers).

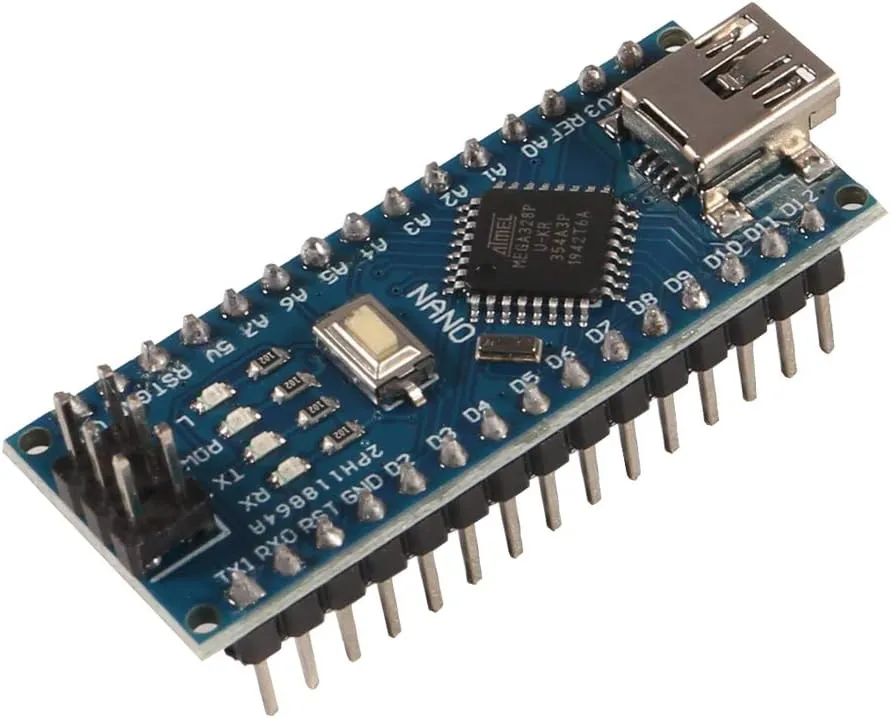

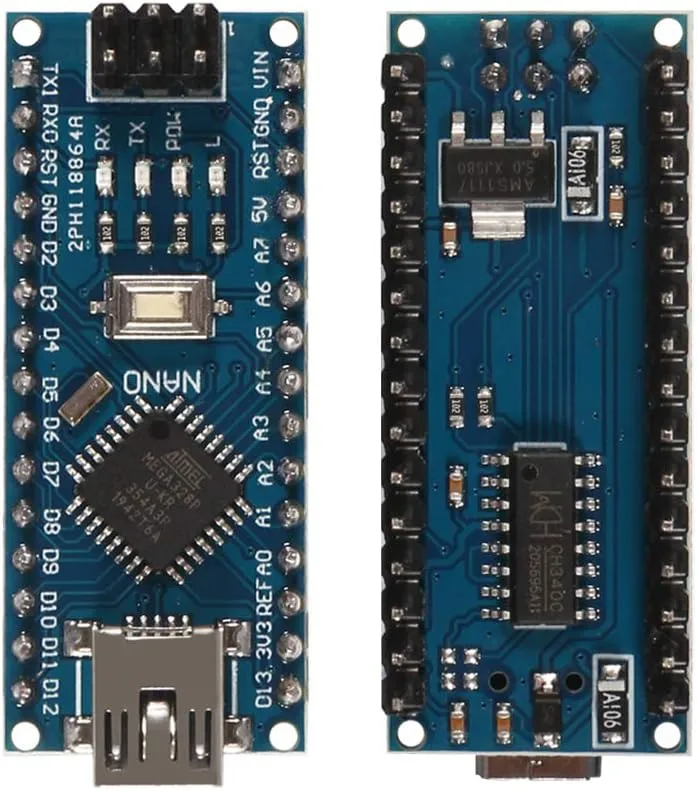

The Nano is a small, complete, and breadboard-friendly board based on the ATmega328 (Arduino Nano 3.x). It has more or less the same functionality of the Arduino/Genuino UNO, but in a different package. It lacks only a DC power jack, and works with a Mini-B USB cable instead of a standard one.
Technical specs
Microcontroller:ATmega328
Architecture: AVR
Operating Voltage: 5 V
Flash Memory: 32 KB of which 2 KB used by bootloader
SRAM: 2 KB
Clock Speed: 16 MHz
Analog I/O Pins: 8
EEPROM: 1 KB
DC Current per I/O Pins: 40 mA (I/O Pins)
Input Voltage: 7-12 V
Digital I/O Pins: 22
PWM Output: 6
Power Consumption: 19 mA
PCB Size: 18 x 45 mm
Weight: 7 g

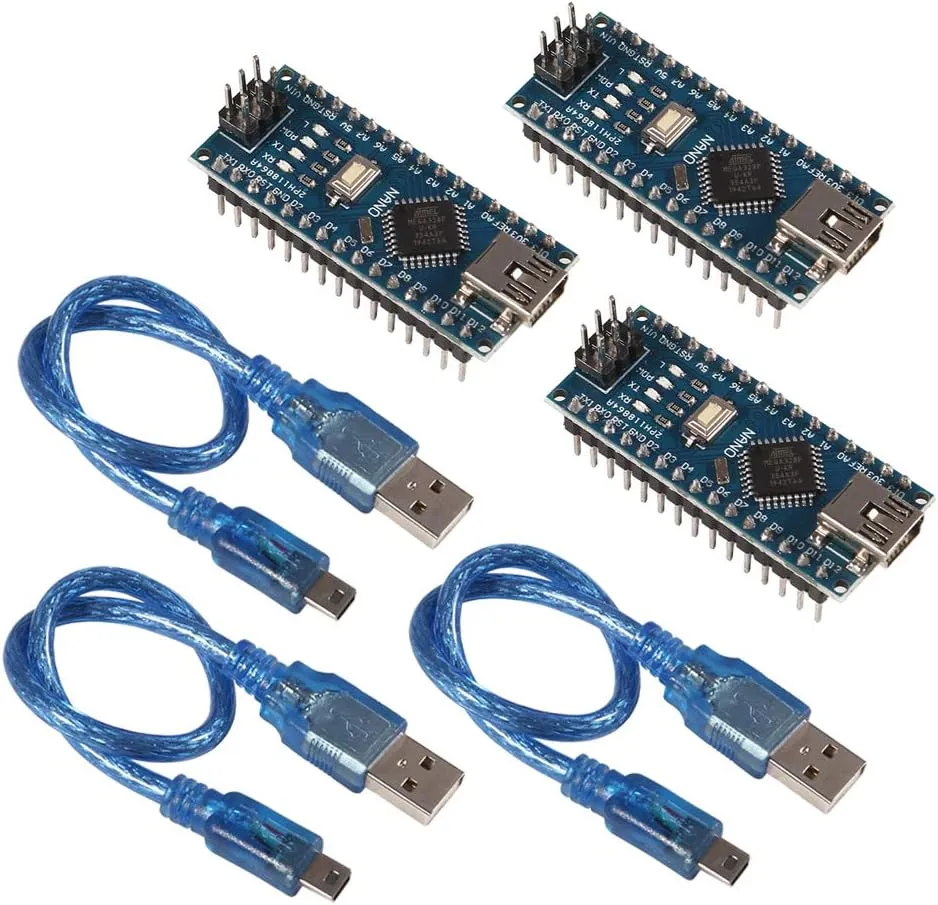

Package Include :
3 X Nano Board
3 X Mini-B USB cable
